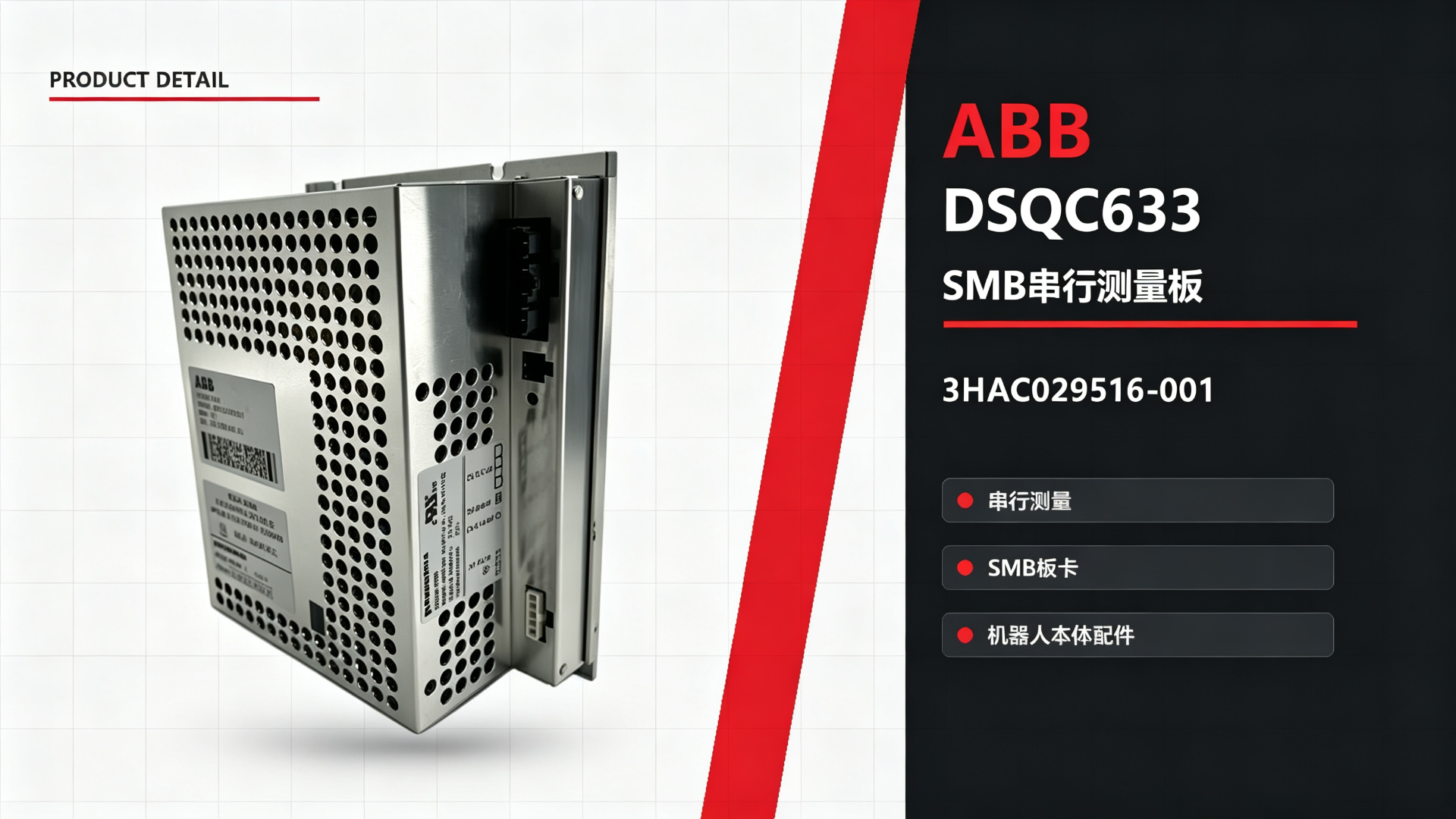

ABB Robot DSQC633 SMB Serial Measurement Board
The ABB DSQC633 SMB Serial Measurement Board is used for robot axis position feedback and revolution counter data management, suitable for encoder communication, revolution counter, and repair/replacement after battery or position anomalies.
Product Type: SMB Serial Measurement Board / Position Feedback Board
Applicable Equipment: ABB robot manipulators configured with the DSQC633 measurement board
Main Functions: Collects axis encoder feedback, stores revolution counter information, and transmits position data with the controller
Common Faults: Revolution counter loss, encoder communication alarm, position anomaly, low battery voltage, board moisture corrosion, or interface damage
Product Use: Equipment repair/replacement, planned maintenance, and critical spare parts inventory
Selection Verification: DSQC number, complete material number, robot model, number of axes, interface, hardware version, and battery configuration.
Application Scenarios
- Repair of ABB robot manipulator position feedback and encoder circuits.
- Inspection and replacement after frequent revolution counter loss or abnormal axis position data.
- Back up the system and record the mechanical zero point and revolution counter status before disassembly.
- After replacement, update the revolution counter according to the procedure and verify the actual position of each axis.
