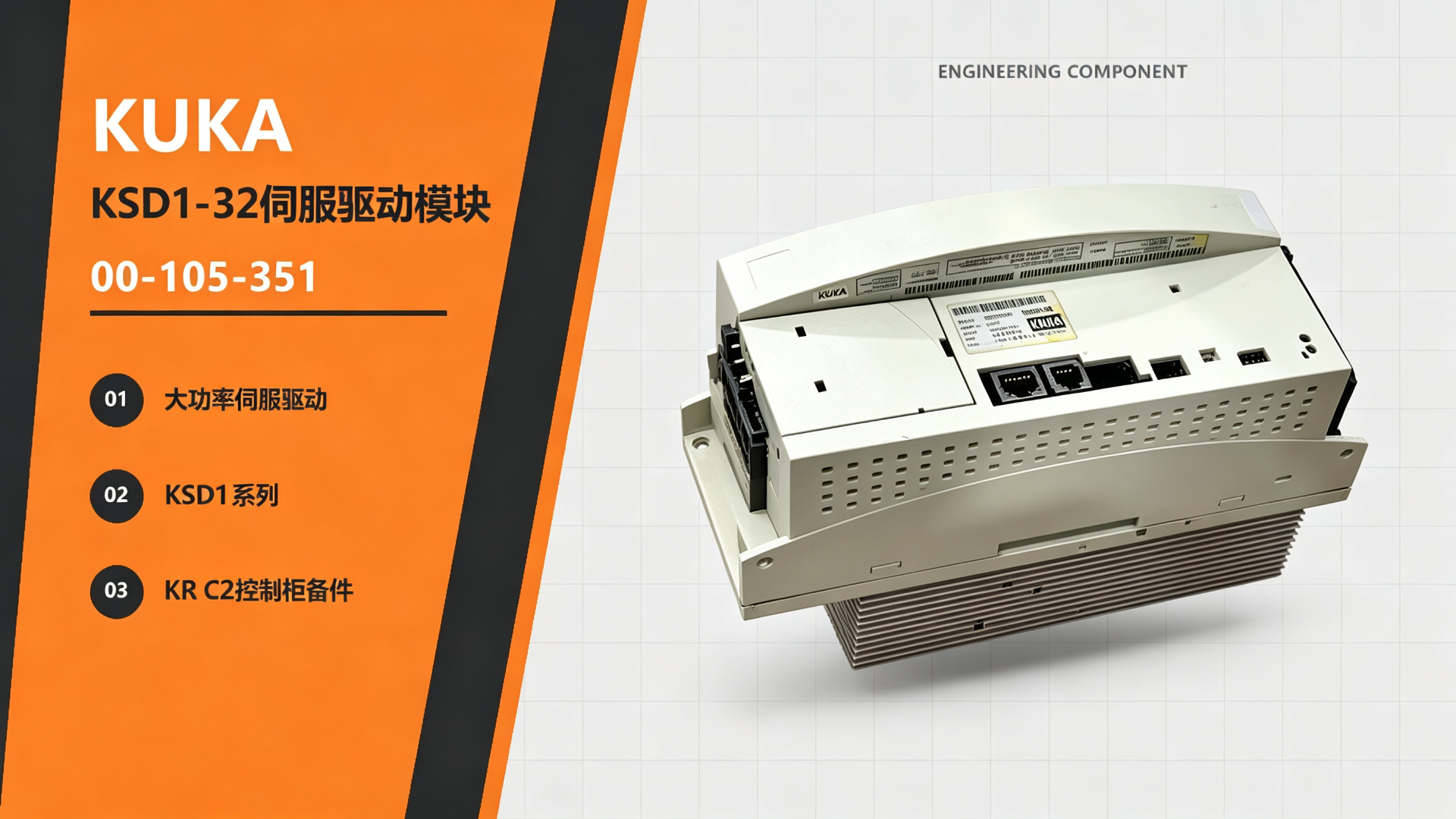

KUKA 00-105-351 KSD1-32 Servo Drive Module
The KUKA 00-105-351 KSD1-32 servo drive module belongs to the KRC2 KSD1 servo drive system. It is used to control a single robot axis motor and perform closed-loop current, speed, and position driving. It is suitable for repair or replacement after occurrences such as drive alarms, inability to enable the robot axis, overcurrent, overheating, or abnormal power output.
Product Series: KRC2 KSD1 Servo Drive System
Product Type: KSD1-32 Single-Axis Servo Drive Module
Applicable Equipment: KUKA KR C2 series robot control cabinets
Main Function: Controls a single robot axis motor and performs closed-loop current, speed, and position driving
Common Faults: Drive alarms, inability to enable the robot axis, overcurrent, overheating, or abnormal power output
Product Use: Fault repair and replacement, scheduled maintenance, preventive maintenance, and critical spare parts inventory
Selection Verification: Control cabinet version, KSD specification, output capacity, interfaces, software version, and matching motor.
Application Scenarios
- Used for the repair, maintenance, and spare parts replacement of KUKA KR C2 series robot control cabinets.
- When drive alarms, inability to enable the robot axis, overcurrent, overheating, or abnormal power output occur, the fault scope should be confirmed by combining alarm logs, wiring checks, and component testing.
- Before replacement, inspect the power supply, grounding, connectors, feedback loops, mechanical load, and related peripheral components.
- After installation, complete verification of power-on, communication, enabling, functionality, safety interlocks, and actual operation.
