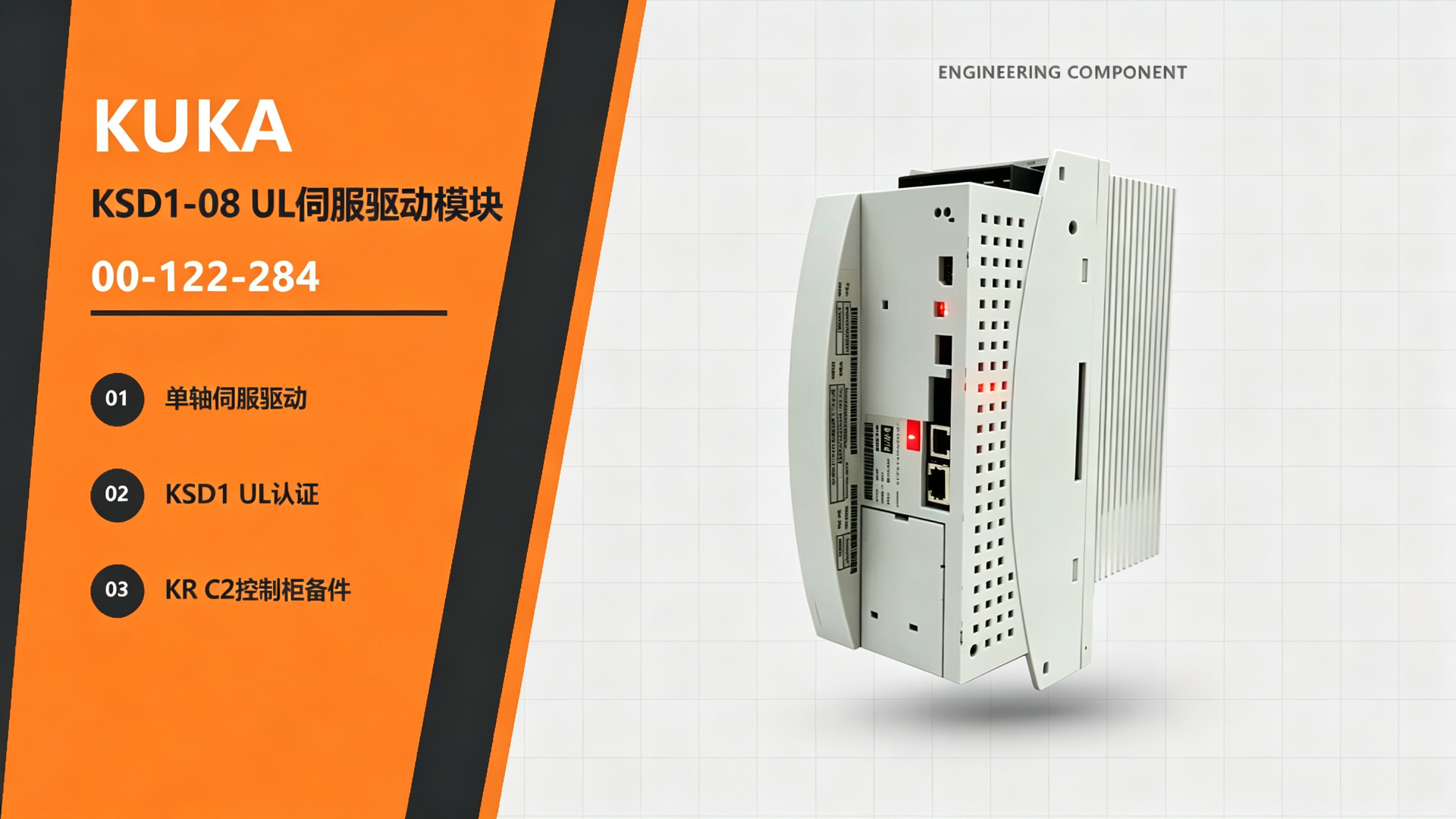

KUKA 00-122-284 KSD1-08 UL Servo Drive Module
The KUKA 00-122-284 KSD1-08 UL servo drive module belongs to the KRC2 KSD1 servo drive system. It is used to drive compatible low-capacity robot axes and monitors current, feedback, and operational status. It is suitable for repair or replacement following failures such as axis enable failure, drive alarm, abnormal output, overcurrent, overheating, or communication faults.
Product Series: KRC2 KSD1 Servo Drive System
Product Type: KSD1-08 UL Single-Axis Servo Drive Module
Compatible Equipment: KUKA KR C2 robot control cabinets configured with low-capacity KSD drives
Main Functions: Drives compatible low-capacity robot axes and monitors current, feedback, and operational status
Common Faults: Axis enable failure, drive alarm, abnormal output, overcurrent, overheating, or communication faults
Product Use: Fault repair and replacement, scheduled maintenance, preventive maintenance, and critical spare parts inventory
Selection Verification: UL specification, KSD capacity, control cabinet model, hardware version, interfaces, and matching motors.
Application Scenarios
- Used for the repair, maintenance, and spare parts replacement of KUKA KR C2 robot control cabinets configured with low-capacity KSD drives.
- When failures such as axis enable failure, drive alarm, abnormal output, overcurrent, overheating, or communication faults occur, the fault scope should be confirmed by combining alarm logs, wiring inspections, and component testing.
- Before replacement, inspect power supply, grounding, connectors, feedback loops, mechanical loads, and related peripheral components.
- After installation, complete verification of power-up, communication, enabling, functions, safety interlocks, and actual operation.
