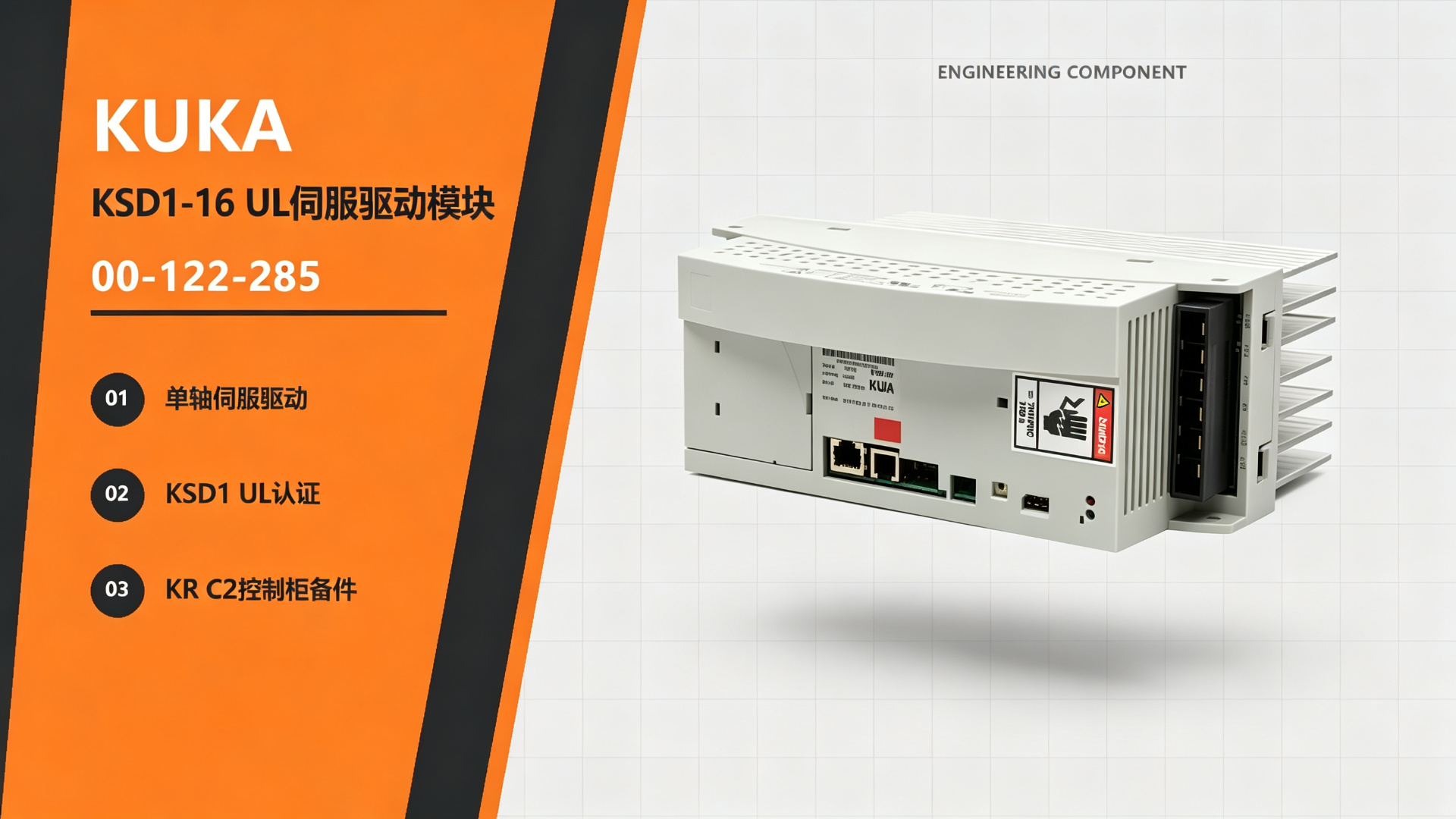

KUKA 00-122-285 KSD1-16 UL Servo Drive Module
The KUKA 00-122-285 KSD1-16 UL servo drive module belongs to the KRC2 KSD1 servo drive system. It is used to provide servo power output, feedback closed-loop control, and drive protection for the matching robot axis. It is suitable for repair and replacement after occurrences such as KSD alarms, axis failure to start, overcurrent, DC bus abnormalities, heat dissipation issues, or output faults.
Product Series: KRC2 KSD1 Servo Drive System
Product Type: KSD1-16 UL Single-Axis Servo Drive Module
Compatible Equipment: KUKA KR C2 robot control cabinets utilizing UL-specification KSD drives
Main Functions: Provides servo power output, feedback closed-loop control, and drive protection for the matching robot axis
Common Faults: KSD alarms, axis failure to start, overcurrent, DC bus abnormalities, heat dissipation issues, or output faults
Product Use: Fault repair and replacement, scheduled maintenance, preventive maintenance, and critical spare parts inventory
Selection Verification: UL version, complete material number, rated current, control cabinet, connectors, and motor model.
Application Scenarios
- Used for the repair, maintenance, and spare parts replacement of KUKA KR C2 robot control cabinets that utilize UL-specification KSD drives.
- When KSD alarms, axis failure to start, overcurrent, DC bus abnormalities, heat dissipation issues, or output faults occur, the fault scope should be confirmed by combining alarm logs, wiring inspections, and component testing.
- Before replacement, inspect the power supply, grounding, connectors, feedback loop, mechanical load, and related peripheral components.
- After installation, complete verification of power-up, communication, enabling, functionality, safety interlocks, and actual operation.
