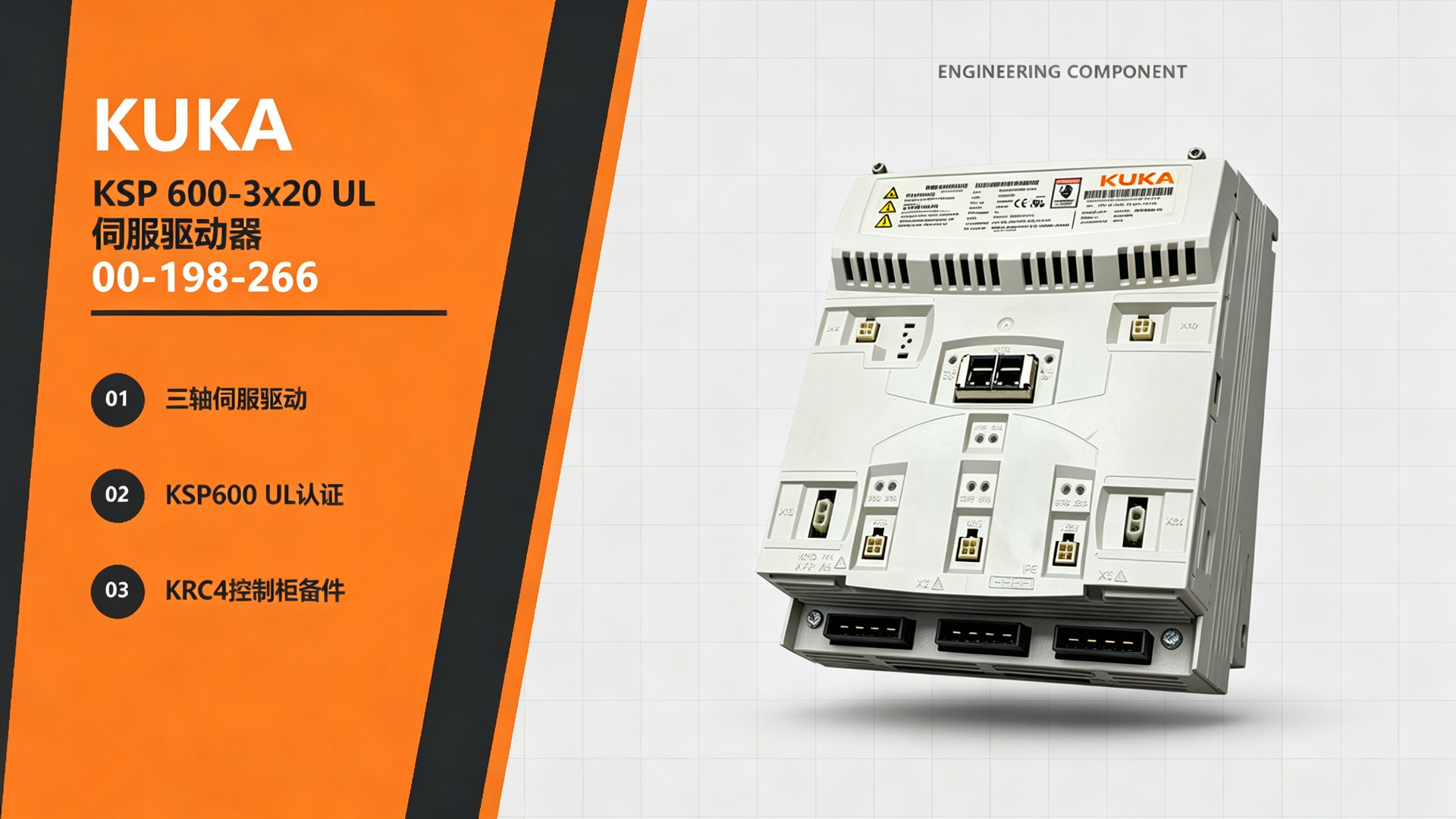

KUKA 00-198-266 KSP 600-3x20 UL Servo Drive
The KUKA 00-198-266 is a KSP 600-3x20 UL three-axis servo drive used in KR C4 systems, providing power control for robot axes. It is suitable for replacement following KSP alarms, multiple axes failing to enable, or output abnormalities.
Product Type: KSP 600-3x20 UL Three-Axis Servo Drive Module
Compatible Equipment: KUKA KR C4, KR C4 midsize, and KR C4 extended control cabinets that utilize the KSP 600 drive system
Main Functions: Provides servo power output, closed-loop control, and drive protection for three robot axis motors
Common Faults: KSP hardware alarms, multiple axes failing to enable, overcurrent, overheating, DC bus or power output abnormalities
Product Use: Fault repair and replacement, scheduled maintenance, preventive maintenance, and critical spare parts inventory
Selection Verification: Part number, KSP specification, control cabinet version, three-axis current configuration, interface, firmware, and matching motors.
Application Scenarios
- Used for fault repair, scheduled maintenance, and spare parts replacement in KUKA KR C4, KR C4 midsize, and KR C4 extended control cabinets that utilize the KSP 600 drive system.
- When phenomena such as KSP hardware alarms, multiple axes failing to enable, overcurrent, overheating, DC bus or power output abnormalities occur, the fault scope should be determined by combining alarm logs, wiring inspections, and component testing.
- Before replacement, inspect the power supply, grounding, connectors, feedback loops, mechanical loads, and related peripheral components to prevent damage to the new part.
- After installation, follow the equipment maintenance procedures to complete verification of power-up, communication, enabling, functionality, safety interlocks, and actual operation.
