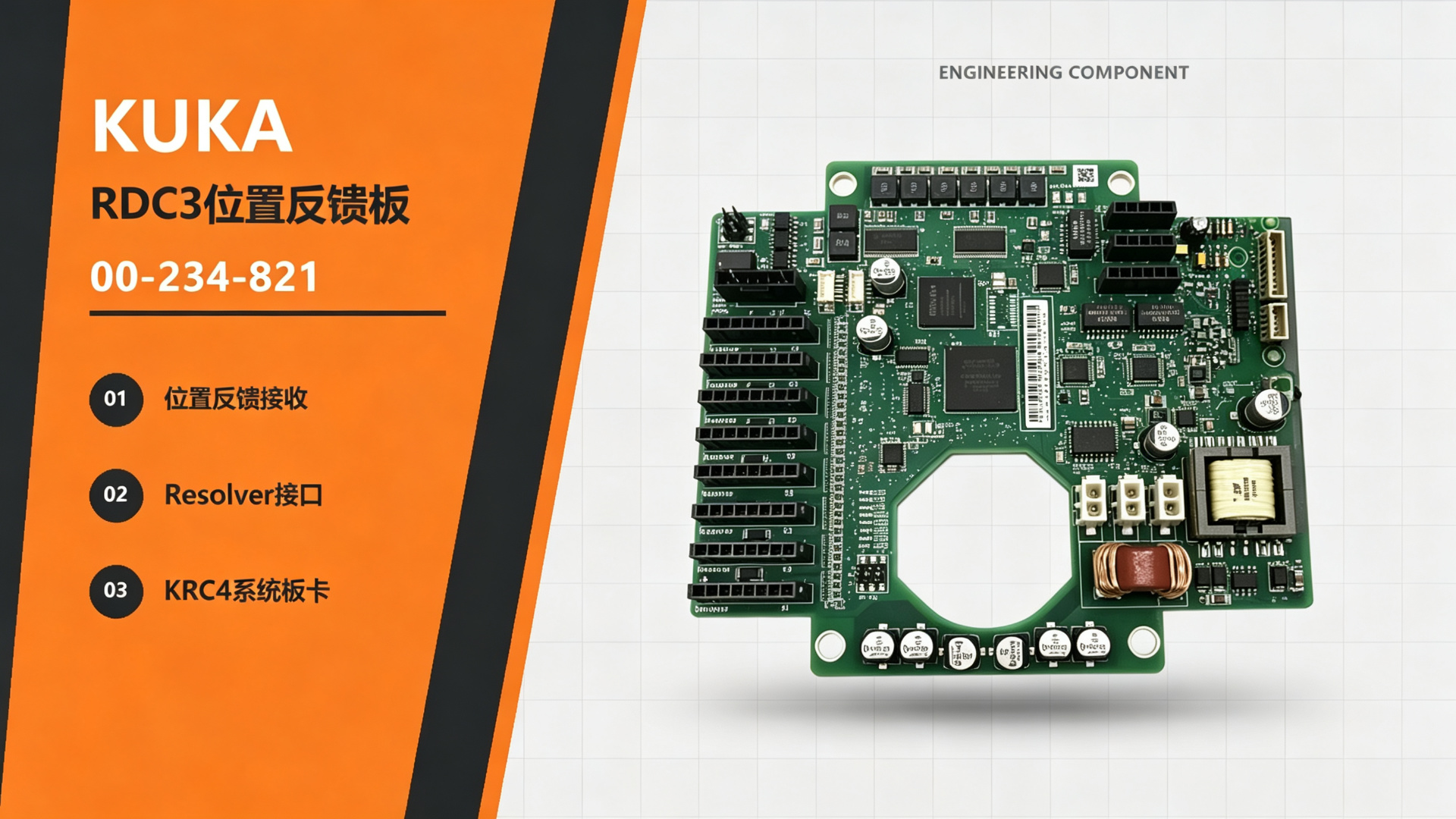

KUKA KR C4 RDC3 Position Feedback Board
The KUKA RDC3 is used for robot arm axis encoder data acquisition and position feedback, suitable for repair and replacement after zero point loss, encoder communication errors, machine data issues, or board hardware abnormalities.
Product Type: Robot Position Feedback Board / RDC Board
Compatible Equipment: KUKA KR C4 robot arms and control systems configured with RDC3
Main Functions: Collects axis encoder data, manages robot position information, and exchanges feedback signals with the controller
Common Faults: Zero point data loss, encoder communication alarms, abnormal axis position, board moisture damage, interface damage, or controller failure to recognize the board
Product Use: Equipment repair and replacement, planned maintenance, and critical spare parts inventory
Selection Verification: RDC version, complete robot model, axis configuration, interfaces, connection cables, machine data, and original board label.
Application Scenarios
- Used for fault repair, downtime maintenance, and spare parts replacement of KUKA KR C4 robot arms and control systems configured with RDC3.
- When phenomena such as zero point data loss, encoder communication alarms, abnormal axis position, board moisture damage, interface damage, or controller failure to recognize the board occur, detection should be performed based on alarm records and equipment status.
- Before replacement, faults in power supply, external wiring, communication cables, mechanical load, and peripheral components should be ruled out.
- After installation, complete verification steps including power-on, low-speed single-axis movement, coordinated motion, temperature rise, and actual production conditions.
